Standard Features
- ETD 150 construction
- Accommodates up to 3/4 in wire rope size
- IP68
- Larger diameter clamp-ons available – call for pricing
Options
- Custom sizes available on request
- Pair with an SCT transmitter for basic safety functions
WARNING: Cancer and Reproductive Harm California Proposition 65
A Durable Solution for Measuring Wire Rope Tension
The MSI Clamp-on Load Cell is a durable solution for measuring wire rope tension, providing dependable overload detection and prevention for overhead cranes and hoists. Available in two envelopes to accommodate most common wire ropes, 3/8-1/2 inch and 9/16-3/4 inch, the MSI Clamp-on installs quickly and easily to the wire rope dead end. The integral signal cable can be connected to a variety of detection device such as the MSI-8004 LED indicator or an advanced SCT weight transmitter. Weight-based setpoints can be used to communicate with crane electronics providing operator alerts and safety shut offs based on unsafe load conditions.
MSI Clamp-On Specifications
| System Accuracy of Calibrated Capacity: 3-5% | Cable Color Code: Red +Excitation Black –Excitation Green +Signal White –Signal |
| Material: 4340 steel, zinc plated | Cable Length: 20 ft integral cable with blunt end termination |
| Output Resistance: 350 ohm | |
| IP Rating: IP68 |

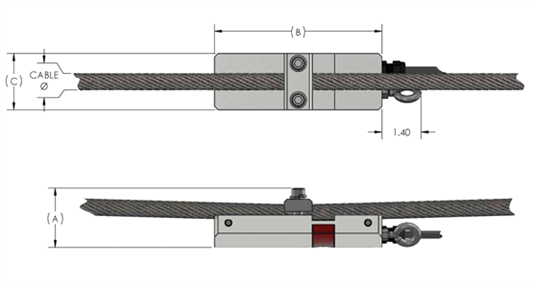

MSI Clamp-On Dimensions
| Cable Range | P/N | A | B | C |
|---|---|---|---|---|
| 3/8 – 1/2 | 179080 | Cable + 1.70 | 6.00 | 2.00 |
| 9/16-3/4 | 179082 | Cable + 1.67 | 6.00 | 2.00 |
Resources / Downloads
Articles
| Title | View |
|---|---|
| Clamp-On Load Cell Basics | |
| Why Buy MSI? |
Catalogs
| Title | Download |
|---|---|
| MSI Clamp-On Catalog Page | Download |
Product Questionnaires
| Title | Download |
|---|---|
| Overhead Weighing Systems Questionnaire | Download |
Sales Literature
| Title | Collateral Wizard | Download |
|---|---|---|
| Crane Scale Selection Guide | Download | |
| MSI Clamp-On Kit | Download | |
| MSI Tension Link and MSI Clamp-on Load Cell | Download | |
| The Overhead Weighing Solutions Buyer’s Guide | Download | |
| 6 Step Integrated Crane Weighing Component Selector Guide | Download |
Videos / Webinars
| Title | View |
|---|---|
| Ensure Safety with MSI | View |
PRICING TO INCLUDE ISO 17025 SCALE CALIBRATION CERTIFICATE
Product image not available
Model : NIST Traceable – ISO/IEC 17025 Accredited Calibration Certificate & Audit PacketQuantity :Total : $195.00
PRICING & SCALE MODELS
Product image not available
Model : 9/16 ClampOn and SCT2200 System Kit, includes 179082 (Clamp On),182589 (SCT2200-AN) and 88792 (12VDC DIN rail PSU)Quantity :Total : $0.00Product image not available
Model : 3/8 ClampOn and SCT2200 System Kit, includes 179080 (Clamp On),182589 (SCT2200-AN) and 88792 (12VDC DIN rail PSU)Quantity :Total : $0.00Product image not available
Model : Load Cell Assembly Clamp-On For 9/16 to 3/4 Inch Wire RopeQuantity :Total : $0.00Product image not available
Model : Load Cell Assembly Clamp-On For 3/8 to 1/2 Inch Wire RopeQuantity :Total : $0.00
PRICING FOR ADDITIONAL OPTIONS
Product image not available
Model : NIST Traceable – ISO/IEC 17025 Accredited Calibration Certificate & Audit PacketQuantity :Total : $195.00
Replacement Parts
Replacement parts can be purchased through Industrial Scale Inc. Please call us at 1-800-924-8963 or fill out a request online.
